900MM pipe jacking machine

产品介绍

泥水平衡岩石顶管掘进机 (Φ600 - Φ3500)

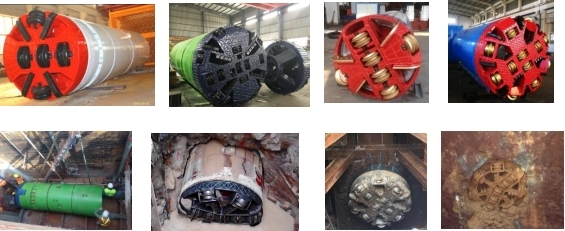

Slurry Pipe Jacking Machine Series For Rock Condition

泥水平衡岩石顶管机应用于市政管道（污水管、供水管、供电电缆管、通信电缆管、天然气管等）的建设，管材通常为砼管、钢管，可以适应在含有卵石、砾石、岩石等复杂地质条件下施工，适用直线或曲线顶进距离100m-1000m。采用泥水平衡方式完成岩石破碎、推进、连续排渣等作业，完成管道安全、高效、高质量非开挖铺设，可以较好地控制地面沉降。

Slurry pipe jacking machinefor rock conditionis applied to the construction of municipal pipelines (sewage, water supply, power cable pipes, communication cable pipes, natural gas pipes, etc.). Usuallyforconcrete pipes or steel pipes, suitable for complex geological conditions such as pebbles, gravel, and rocks, straight-line or curved jacking distances of 100m-1000m. The use of slurry balance method to completerock fragmentation,propulsion, continuousslag discharge and other operations, can achieve safe, efficient, and high-qualitytrenchless laying of pipelines, and effectively control ground settlement. 图三四机身白色

Pipe ID (mm)	Machine DimensionOD*L(mm)	Cutterhead Power (kW*set)	Torque (kN·m)	Revolution (r/min)	Steering Jack (kNstset)	Hydraulic Unit (kW)	Slurry Line Diam. (mm)	Shaft Dimension (mm)	Power Source (Hz/V)
Φ600	780 x 3500	18.5 x 1	35	0-7	294 x 30 x 4	1.1	80	5000x3000	50/400
Φ800	1020 x 4000	37 x 1	69	0-7	343 x 35 x 4	1.1	100	5000x3000	50/400
Φ900	1100 x 4000	37 x 1	69	0-7	490 x 40 x 4	1.5	100	5000x3000	50/400
Φ1000	1220 x 4000	45 x 1	107	0-6	490 x 40 x 4	1.5	100	5000x4000	50/400
Φ1200	1500 x 4500	30 x 3	215	0-5	784 x 45 x 4	2.2	100	5000x4000	50/400
Φ1350	1640 x 4500	45 x 3	322	0-5	980 x 50 x 4	2.2	100	7000x4000	50/400
Φ1500	1810 x 4600	55 x 3	394	0-5	980 x 55 x 4	3	150	7000x4000	50/400
Φ1650	1950 x 4600	55 x 3	394	0-5	980 x 60 x 4	3	150	7000x4000	50/400
Φ1800	2190 x 5200	55 x 4	600	0-5	784 x 70 x 8	5.5	150	7500x4000	50/400
Φ2000	2440 x 5500	55 x 4	600	0-5	784 x 80 x 8	5.5	150	7500x4000	50/400
Φ2100	2540 x 6000	55 x 4	600	0-5	980 x 80 x 8	5.5	150	8000x4000	50/400
Φ2200	2610 x 6000	55 x 5	750	0-5	980 x 90 x 8	5.5	150	8000x4000	50/400
Φ2400	2910 x 6500	55 x 5	750	0-5	1176 x 100 x 8	5.5	150	8500x5000	50/400
Φ2500	2980 x 6500	55 x 5	572	0-5	1176 x 100 x 8	5.5	150	8500x5000	50/400
Φ2600	3070 x 6500	55 x 6	900	0-5	1176 x 100 x 8	5.5	150	8500x5500	50/400
Φ2800	3340 x 6500	55 x 6	900	0-5	1470 x 110 x 8	7.5	150	8500x5500	50/400
Φ3000	3530 x 7000	75 x 6	1432	0-4	1470 x 120 x 8	7.5	150	9000x6000	50/400
